Főkategória >Biztonságtechnika >IP kamerák

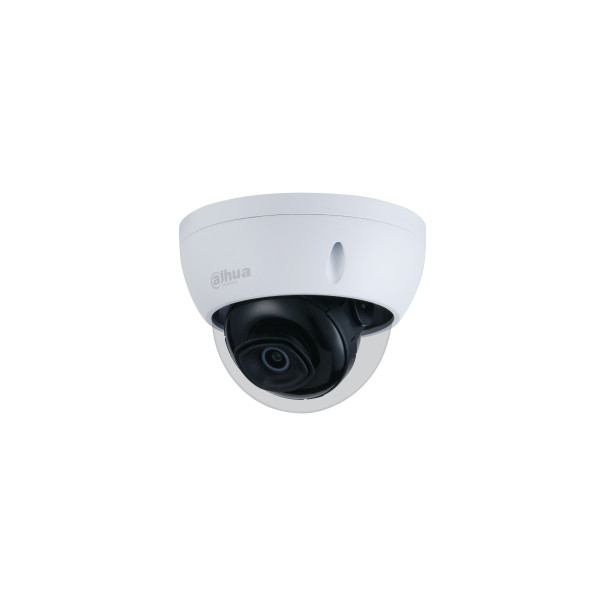

Dahua IP dómkamera - IPC-HDBW3541E-AS (AI; 5MP, 2,8mm, kültéri, H265+, IP67, IR 50m; ICR, WDR, PoE, I/O,audio, IK10, SD)

Dahua IP dómkamera - IPC-HDBW3541E-AS (AI; 5MP, 2,8mm, kültéri, H265+, IP67, IR 50m; ICR, WDR, PoE, I/O,audio, IK10, SD)
72 112 Ft+ÁFA Bruttó: 91 582 Ft
db Kosárba Kosárba
Dahua IP dómkamera - IPC-HDBW3541E-AS (AI; 5MP, 2,8mm, kültéri, H265+, IP67, IR 50m; ICR, WDR, PoE, I/O,audio, IK10, SD)
Részletek Adatok
  • Camera
    Image Sensor - 1/2.7”5Megapixel progressive CMOS
    Effective Pixels - 2592 (H) ×1944 (V)
    ROM- 128 MB
    RAM - 512 MB
    Scanning System - Progressive
    Electronic Shutter Speed - Auto/Manual 1/3 s–1/100000 s
    Min. Illumination - 0.005 Lux@F1.6
    IR Distance - 50 m (164.0 ft)
    IR On/Off Conrol - Auto/Manual
    IR LEDs Number - 3 (IR LEDs)
    Pan/Tilt/Rotation Range - Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355°

    Lens
    Lens Type - Fixed focal
    Mount Type - M12
    Focal Length - 2.8 mm; 3.6 mm; 6 mm
    Max. Aperture - F1.6
    Field of View -
    2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°
    3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°
    6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°
    Iris Type - Fixed aperture
    Close Focus Distance -
    2.8 mm: 0.9 m (3.0 ft)
    3.6 mm: 1.6 m (5.3 ft)
    6 mm: 3.2 m (10.5 ft)
    Perimeter Protection
    Tripwire; intrusion (Recognition of human and vehicle)
    Intelligent Search
    Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
    Video
    Video Compression - H.265; H.264; H.264H; H.264B; MJPEG
    Smart Codec - Yes
    Video Frame Rate -
    Main stream (2592 × 1944@1–20 fps)
    (2688 × 1520@1–25/30 fps)
    sub stream (704 × 576@1–25/30 fps)
    third stream (1280 × 720@1–25/30 fps)
    Stream Capability - 3 streams
    Resolution - 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
    Bit Rate Control - CBR/VBR
    Video Bit Rate -
    H.264: 3 Kbps–8192 Kbps
    H.265: 3 Kbps–8192 Kbps
    Day/Night - Auto(ICR)/Color/B/W
    BLC - Yes
    HLC - Yes
    WDR - 120 dB
    White Balance - Auto/natural/street lamp/outdoor/manual/regional custom
    Gain Control - Auto/Manual
    Noise Reduction - 3D DNR
    Motion Detection - OFF/ON (4 areas, rectangular)
    Region of Interest(RoI) - Yes (4 areas)
    Smart IR - Yes
    Image Rotation - 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)
    Mirror - Yes
    Privacy Masking - 4 areas
    Audio
    Audio Compression - G.711a; G.711Mu; G726; AAC
    Network
    Network - RJ-45 (10/100 Base-T)
    Protocol - IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
    RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
    Interoperability - ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec
    Scene Self-adaptation -Yes
    User/Host - 20 (Total bandwidth: 64 M)
    Edge Storage - FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS
    Browser -
    IE: IE8, IE9, IE11
    Chrome
    Firefox
    Management Software - Smart PSS, DSS, DMSS
    Mobile Phone - IOS; Android
    Certification
    Certifications - CE-LVD: EN60950-1
    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
    FCC: 47 CFR FCC Part 15, Subpart B
    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
    Port
    Audio Input - 1-channel (RCA port)
    Audio Output - 1-channel (RCA port)
    Alarm Input - 1 channel in: 5mA 3V–5V DC
    Alarm Output - 1 channel out: 300mA 12V DC
    Power
    Power Supply - 12V DC/PoE (802.3af)
    Power Consumption <7.3W
    Environment
    Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than≤95%
    Strorage Conditions -40°C to +60°C (-40°F to +140°F)
    Ingress Protection - IP67; IK10
    Structure
    Casing - Metal + Plastic
    Dimensions - 81 mm × Φ109.9 mm (3.2" × Φ4.3")
    Net Weight - 378 g (0.8 lb)
    Gross Weight - 523 g (1.2 lb)

  • WDR
    Van
    Tápellátás
    12VDC / PoE
    Lencse
    2,8
    Fogyasztás
    7,3
    Hang bemenet
    Van
    Működési hőmérséklet
    -40C - +60
    Max. LAN sebesség
    100
    Látószög
    98 / 72
    Listaár
    122 415 HUF
    Gyártó
    DAHUA
    Gyártói cikkszám
    IPC-HDBW3541E-AS-0280B-S2
    Garancia
    36 hónap
    Típus
    Dóm
    Kültéri kivitel
    Van
    Beépített Infra led
    Van
    ICR
    Van
    Max. IR távolság
    50
    IP kamera felbontás
    5MP
    CCD/CMOS
    1/2,7" CMOS
    Írisz vezérlés
    Auto
    Kapcsolat típusa
    Vezetékes
    H264+
    Van
    H265
    Van
    H265+
    Van
    Tömörítés
    H265+, H265, H264+, H264
    SD kártya támogatás
    Van
    BLC
    Van
    Lencs foglalat
    M12
    Digitális zajszűrés
    3DNR
    Onvif
    Van
    AWB
    Van
    FPS Max. felbontás esetés
    20
    Széria
    Lite AI
    EAN
    6923172541567
    EAN
    6923172541567
    Tömeg
    540 g/db
