326625 24-Port Cat.6A Shielded Patch Panel, Black

Model Number

326625

SKU

326625

• 24 Ports x Cat.6A RJ45

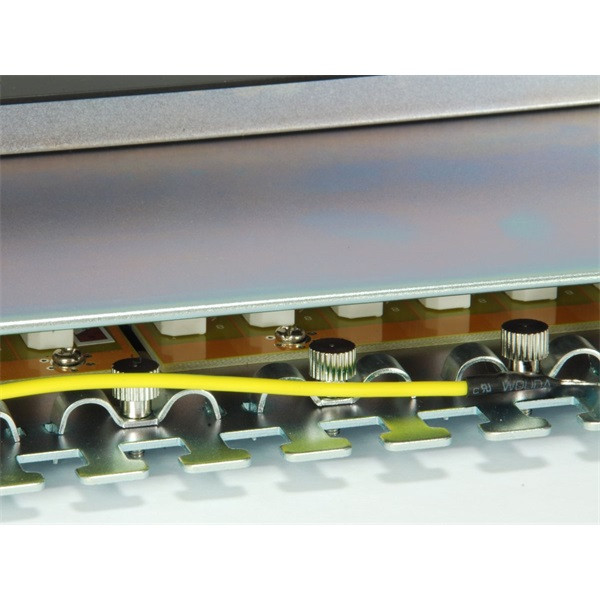

• Shielded
• Class EA, up to 500MHz,  10GBase-T
• ISO/IEC 11801 and EN 50173
• Compliant with ANSI/TIA/EIA 568 standard
• IDC T568A/T568B Color Coded
• Dual IDC (LSA and 110) compatible
• 19", 1U
• Material: Strudy Steel
• Color: Black (RAL 9005)

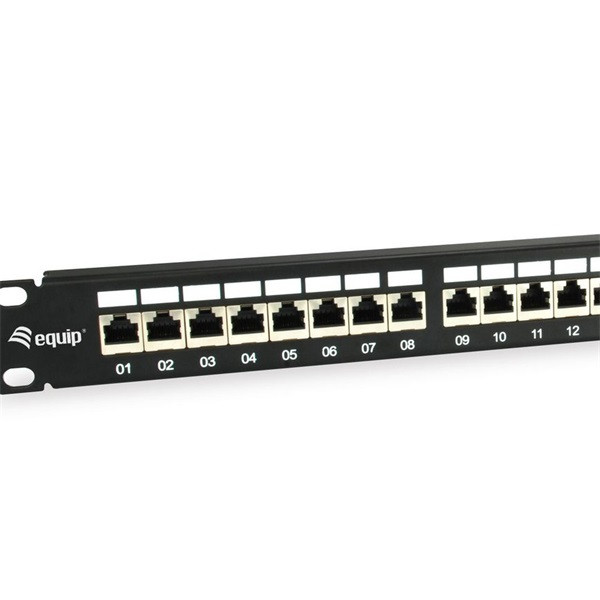

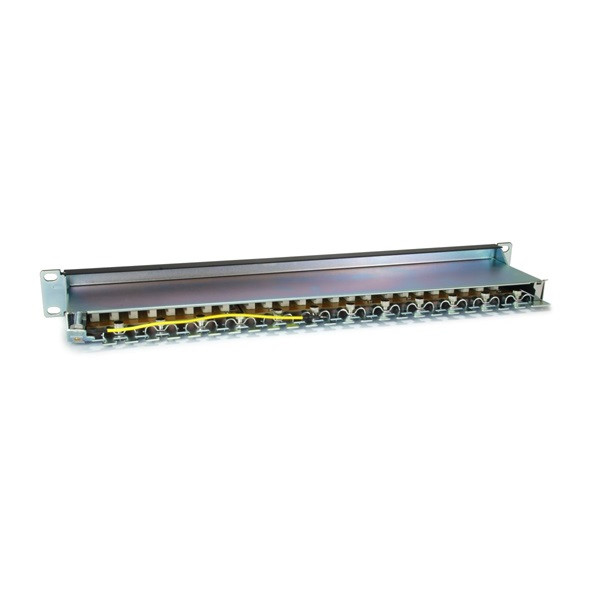

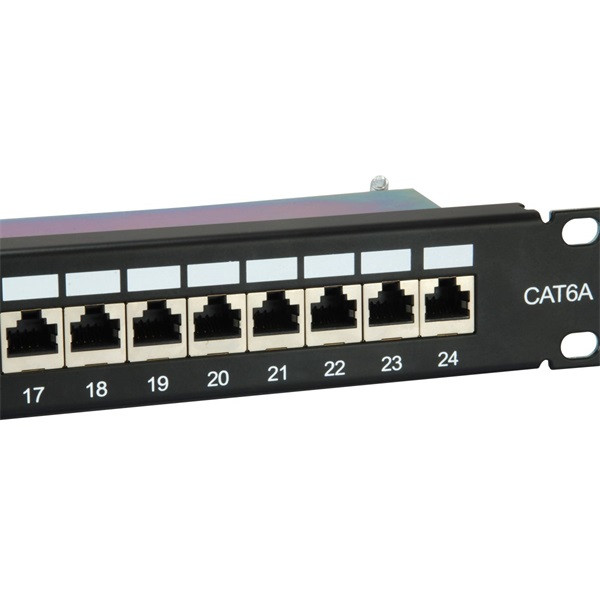

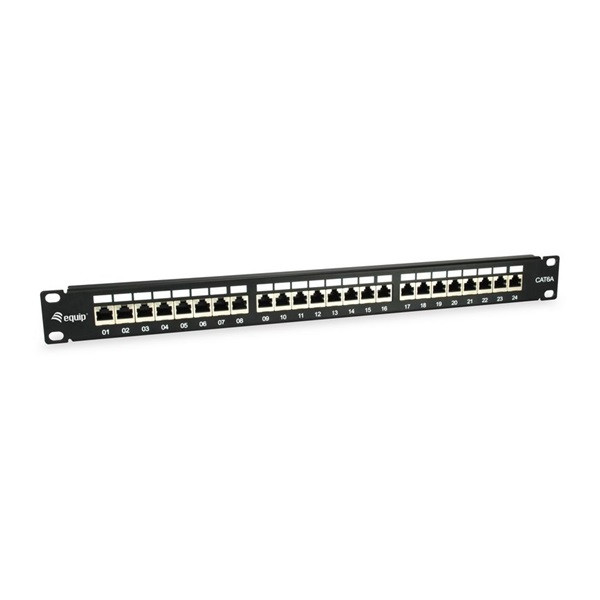

The equip® Patch Panel is a 19" 1U network distribution unit integrating cable management system for better routing and strain relief requirements, suitable for both LSA and 110 standards. Featuring 24 ports, this patch panel is recommended to connect with equip® unshielded keystone jacks and cables. Moreover, each port is marked with port number for recognition.
