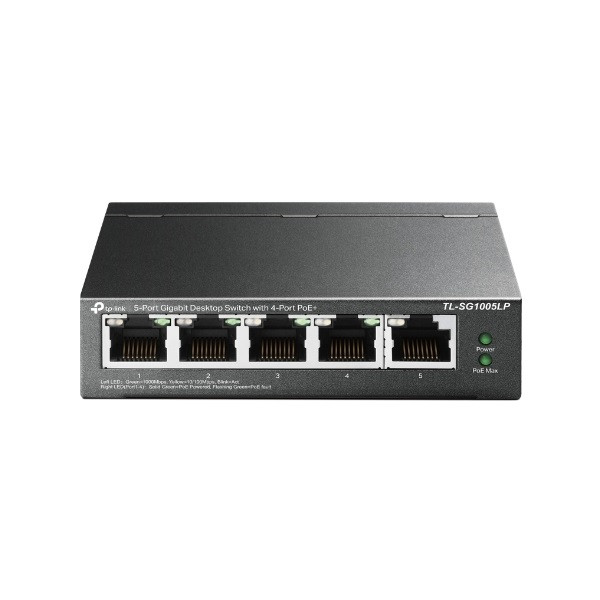

TP-Link Switch PoE - TL-SG1005LP (5 port 1Gbps; 5/4 af PoE port; 40W)

HARDWARE FEATURES
Interface  • 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity  Fanless
External Power Supply  External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate  7.44 Mpps
PoE Ports (RJ45)  • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
Mac Address Table  2K
Jumbo Frame  16 KB
Switching Capacity  10 Gbps
Dimensions ( W x D x H )  3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption  • 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation  • 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features  • Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
Transfer Method  Store-And-Forward
OTHERS
Certification  FCC, CE, RoHS
Package Contents  • TL-SG1005LP
• Power Adapter
• Installation Guide
Environment  • Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
